COMPACFOAM 200

Compacfoam rigid nsulation for door thresholds

Specialist rigid thermoplastic insulation used for thermal bridging detailing, including at window & door thresholds.



COMPACFOAM PRICELIST


To order or for advice on your project, please contact us on 01484 461705.

  • Strong lightweight rigid insulation made from thermoplastic foam, based on polystyrene.
  • Ideally suited for support for door thresholds and window installation, where it is important to minimise thermal bridging.
  • Wide range of applications where structural support and the possibility of obtaining secure fixings into the material are required.
  • Can be used as a replacement for timber battens in these applications, where thermal bridging is to be reduced.
  • High compressive strength with good screw pull-out resistance and easy to drill & saw
  • Thermal conductivity: 0.046 W/m.K and Density: 200 kg/m3
  • Available with Parabond 600, a fast curing, elastic white adhesive with high initial bonding strength suitable for securing Compacfoam to building materials and itself
  • Thermal conductivity = 0.046 W/mK
  • Average stress at 5%: 2.56 N/mm2
  • Average stress at 2%: 1.91 N/mm2
  • Modulus of elasticity in linear-elastic range (E-Module): 102 N/mm2
  • Recommended stress level (under service load): 1.01 N/mm2
  • Water vapour diffusion resistance factor: 25
  • Maximum water absorptive capacity during complete submersion: 5-10%
  • Material behaviour in response to fire, according to EN 13501: Euroclass E
  • Elongation at maximum force (maximum strain at failure load): >10%
  • Final creep rate (anticipated long-term deformation at serviceability limit state: <3%



Euroclass system

Many of the member countries of the European Union (EU) have adopted the harmonized Euroclass system of reaction to fire performance of building product. Compacfoam was subjected to a test for fire behaviour according to standards and classified as Euroclass E.

Cutting/ sawing Compacfoam

The best way to cut Compacfoam is to use saw blades with large distances between the teeth or milling blades, to avoid the material ‘melting’. More information

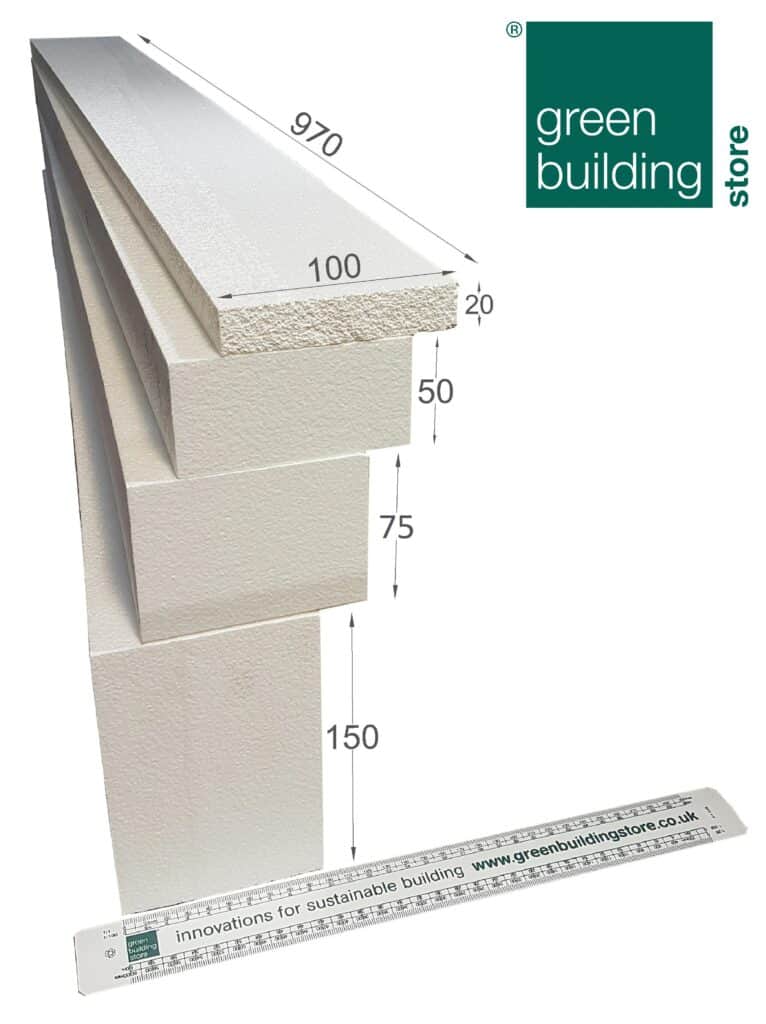

Dimensions

•    Available in rectangular bars in three sizes
•    Width/ height: 100 mm X 75 mm/ 100 mm X 50 mm/ 100mm X 20mm
•    Length: 0.98 m (980 mm)
•    Other dimensions available to special order

COMPACFOAM WIKI pages

Title Type
Compacfoam 200 product sheet Brochure Download
Compacfoam + Parabond - PRICELIST Pricelist Download
Parabond 600 Datasheet Datasheets Download
Parabond 600 Safety Data Sheet Datasheets Download

Image Gallery

compacfoam-door-threshold-installation-detail
compacfoam-final-airtightness-detail
compacfoam-to-slab-revised-v2
compacfoam-behind-wall-plate-final
cold-bridge-free-window-front-wall-assembly-with-compacfoam-assembly-sub-frames-2
cold-bridge-free-window-front-wall-assembly-with-compacfoam-assembly-sub-frames
compacfoam-2

Installation Gallery

compacfoam-in-intermediate-floor-detail
compacfoam-in-golcar-passivhaus-threshold-2013-10-07
compacfoal-socket
compacfoam-uses-minimising-thermal-bridges-curtain-rail-detail
